Home 2020 Ford Transit-150 Rear Suspension

Rear Suspension for 2020 Ford Transit-150

No.

Part # / Description / Price

Price

Leaf Spring

LK4Z-5560-A

Leaf Spring, Left

Transit. Bus. Single rear wheel. Without long series. 430l series. With 130 wheelbase, 3.5, 3.7L, without dual rear wheel.

$501.67

Leaf Spring

LK4Z-5560-B

Leaf Spring, Left

Transit. Cutaway/chassis cab. With 130 wheelbase, 3.5, 3.7L, with dual rear wheels. With 148 wheelbase, with extended.

$588.33

Leaf Spring Pad

CK4Z-5586-B

Leaf Spring Pad, Left

$31.22

Front Insulator Mount Bolt

-W500750-S442

Front Insulator Mount Bolt, Left

$4.50

Front Insulator Nut

-W520216-S442

Front Insulator Nut, Left

M16.

$4.50

Front Bracket

BK3Z-5775-P

Front Bracket, Left

With dual rear wheels.

$69.83

Front Bracket

BK3Z-5775-Q

Front Bracket, Left

Without dual rear wheels.

$88.00

Support Bracket

MK3Z-5A765-A

Support Bracket, Right

With dual rear wheels.

$178.33

Support Bracket

BK3Z-5A765-B

Support Bracket, Left

With dual rear wheels.

$102.50

Leaf Spring Plate

BK2Z-5798-C

Plate, Left

$64.17

Plate Clip

-W705422-S300

Plate Clip, Left

$2.00

U-Bolt

CK4Z-5705-A

U-Bolt, Left

Without dual rear wheels. Transit. Single rear wheels.

$31.50

U-Bolt

CK4Z-5705-B

U-Bolt, Left

Transit. Dual rear wheels.

$31.17

U-Bolt Nut

-W703529-S437

U-Bolt Nut, Left

$3.50

Front Insulator

BK2Z-5781-A

Rear Insulator, Left

With dual rear wheels. Transit. Front.

$21.67

Rear Insulator

BK2Z-5781-B

Rear Insulator, Left

Without dual rear wheels.

$25.00

Shackle

BK2Z-5776-C

Shackle, Left

Without dual rear wheels, inner. Without dual rear wheels, outer. Transit. Single rear wheels. Left.

$26.00

Shackle

BK2Z-5776-D

Shackle, Left

Without dual rear wheels, inner. Without dual rear wheels, outer. Transit. Single rear wheels. Right.

$21.17

Shackle

KK3Z-5776-A

Shackle, Left

Transit. With dual rear wheels.

$70.17

Shackle Bolt

-W500772-S442

Shackle Bolt, Left

Without dual rear wheels.

$17.00

Shackle Bolt

-W712505-S442

Shackle Bolt, Left

With dual rear wheels.

$13.50

Upper Bushing Nut

-W520115-S442

Shackle Nut, Left

$2.50

Spring Bushing

CK4Z-5781-A

Bushing, Left

Transit. Rear.

$11.67

Bushing Mount Bolt

-W712318-S442

Bushing Mount Bolt, Left

Without dual rear wheels.

$5.50

Rear Mount

BK3Z-5775-M

Rear Mount, Left

Without dual rear wheels.

$61.17

Rear Mount

BK3Z-5775-N

Rear Mount, Right

Without dual rear wheels.

$61.17

Bracket - Rear Spring

MK3Z-5775-B

Rear Mount, Right

With dual rear wheels.

$157.50

Rear Mount

BK3Z-5775-L

Rear Mount, Left

With dual rear wheels.

$59.17

Rear Mount Mount Bolt

-W500775-S442

Rear Mount Mount Bolt, Left

$5.50

Rear Bracket

6C1Z-5775-C

Rear Bracket, Left

With dual rear wheels.

$60.17

Rear Bracket Mount Bolt

-W500749-S442

Rear Bracket Mount Bolt, Left

Trailer hitch,bolt.

$3.50

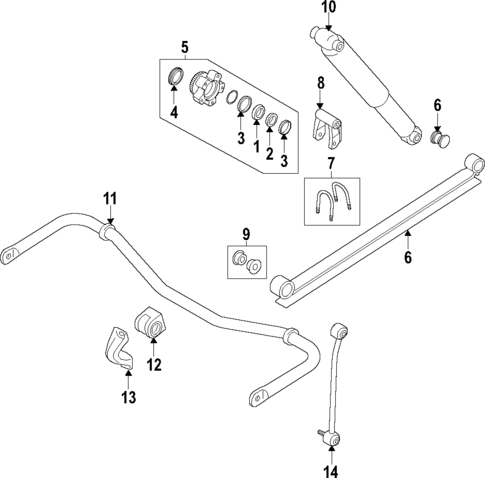

No.

Part # / Description / Price

Price

Inner Bearing

BC3Z-1244-A

Inner Wheel Bearing

$25.00

Outer Bearing

CC3Z-1240-A

Outer Wheel Bearing

$21.33

Outer Bearing

CK4Z-1240-A

Outer Wheel Bearing

Transit. Dual rear wheels.

$29.83

Inner Bearing Cup

BC3Z-1243-A

Wheel Bearing Race

$17.17

Outer Bearing Cup

CC3Z-1239-A

Wheel Bearing Race

$13.95

Outer Bearing Cup

CK4Z-1239-A

Wheel Bearing Race

Transit. Outer. With dual rear wheels.

$20.67

Inner Seal

4C3Z-1S177-D

Hub Seals

Transit. Dual rear wheels.

$38.36

Hub Assembly

CK4Z-1109-D

Rear Hub & Bearing Assembly

Transit. Dual rear wheels. Single rear wheels. Without 3.31 gear ratio. 4600 lb frt. axle rating.

$296.36

Rear Hub & Bearing Assembly

CK4Z-1109-E

Without dual rear wheels. Transit. Single rear wheels. With 3.31 gear ratio.

$270.91

Rear Hub & Bearing Assembly

CK4Z-1A034-B

Transit. Dual rear wheels. Without 510 series.

$200.00

Rear Hub & Bearing Assembly

LK4Z-1A034-A

Transit. Dual rear wheels. With 510 series.

$414.55

Spring - Rear

CK4Z-5560-AA

Leaf Spring

Transit. Cargo van. With 130 wheelbase, 3.5, 3.7L, with dual rear wheels. With 130 wheelbase, 2.0, 3.2L, with dual rear wheels.

$605.00

Spring - Rear

CK4Z-5560-AC

Leaf Spring

Transit. Bus. Single rear wheel. Without long series. 410l series. Without low roof line. With 130 wheelbase, 3.5, 3.7L, without dual rear wheel.

$480.00

Leaf Spring

CK4Z-5560-V

Transit. Wagon. Without extended frame series. Without long series. 390m series. With 148 wheelbase, without extended.

$485.00

Leaf Spring

CK4Z-5560-W

Transit. Wagon. Without extended frame series. With long series. Bus. Single rear wheel.

$486.67

Spring - Rear

CK4Z-5560-Z

Leaf Spring

With 148 wheelbase, with extended. Transit. Wagon. With extended frame series. Bus. Dual rear wheels.

$593.33

Leaf Spring

LK4Z-5560-A

Transit. Bus. Single rear wheel. Without long series. 430l series. With 130 wheelbase, 3.5, 3.7L, without dual rear wheel.

$501.67

Leaf Spring

LK4Z-5560-B

Transit. Cutaway/chassis cab. With 130 wheelbase, 3.5, 3.7L, with dual rear wheels. With 148 wheelbase, with extended.

$588.33

U-Bolt

CK4Z-5705-A

Without dual rear wheels. Transit. Single rear wheels.

$31.50

U-Bolt

CK4Z-5705-B

Transit. Dual rear wheels.

$31.17

Shackle

BK2Z-5776-C

Without dual rear wheels, inner. Without dual rear wheels, outer. Transit. Single rear wheels. Left.

$26.00

Shackle

BK2Z-5776-D

Without dual rear wheels, inner. Without dual rear wheels, outer. Transit. Single rear wheels. Right.

$21.17

Shackle

KK3Z-5776-A

Transit. With dual rear wheels.

$70.17

Spring Bushing

CK4Z-5781-A

Transit. Rear.

$11.67

Shock Absorber

FK3Z-18125-B

With 130 wheelbase, with van. Transit. Cargo van. 410/430 series. Cargo van. 390l, 390m series. From 7/14/14.

$110.73

Shock Absorber

FK3Z-18125-C

Transit. Cutaway/chassis cab. 410, 430, 470+l/+m series.

$112.00

Shock Absorber

FK4Z-18125-A

With 148 wheelbase, without extended, with van. Transit. Wagon. Without extended frame series. 390l, 390m series. From 10/6/14. To 10/6/14. Bus. 390m series. Single rear wheel.

$123.64

Shock Absorber Assembly

FK4Z-18125-D

Shock Absorber

Transit. Cutaway/chassis cab. 450el, 470+l series. Exc.Cargo Van.

$128.73

Shock Absorber

FK4Z-18125-E

Transit. Wagon. With extended frame series. From 9/29/14. Cargo van. 450e/470e series.

$127.27

Shock Absorber Assembly

LK4Z-18125-C

Shock Absorber

Transit. Bus. 410l, 430l. Single rear wheel.

$146.18

Shock Absorber

MK3Z-18125-A

Transit. Cutaway/chassis cab. 450m/l, 470m/l, 470+el,510 series.

$146.73

Stabilizer Bar

BK3Z-5A772-C

Transit. Dual rear wheels.

$144.50

Stabilizer Bar

CK4Z-5A772-D

Without dual rear wheels. Transit. Single rear wheels.

$151.17

Stabilizer Bar Bushing

GK2Z-5493-B

Bushings

Transit.

$36.33

Stabilizer Bar Bracket

BK3Z-5B484-A

Bracket

Transit.

$19.17

Stabilizer Link

BK3Z-5C486-A

Link

Transit.

$56.36
